Product description

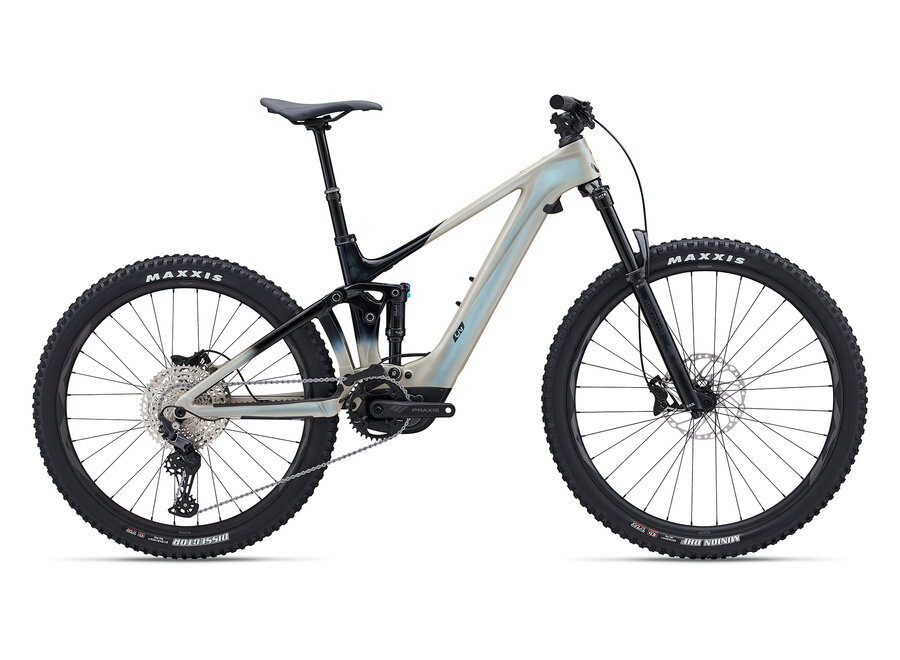

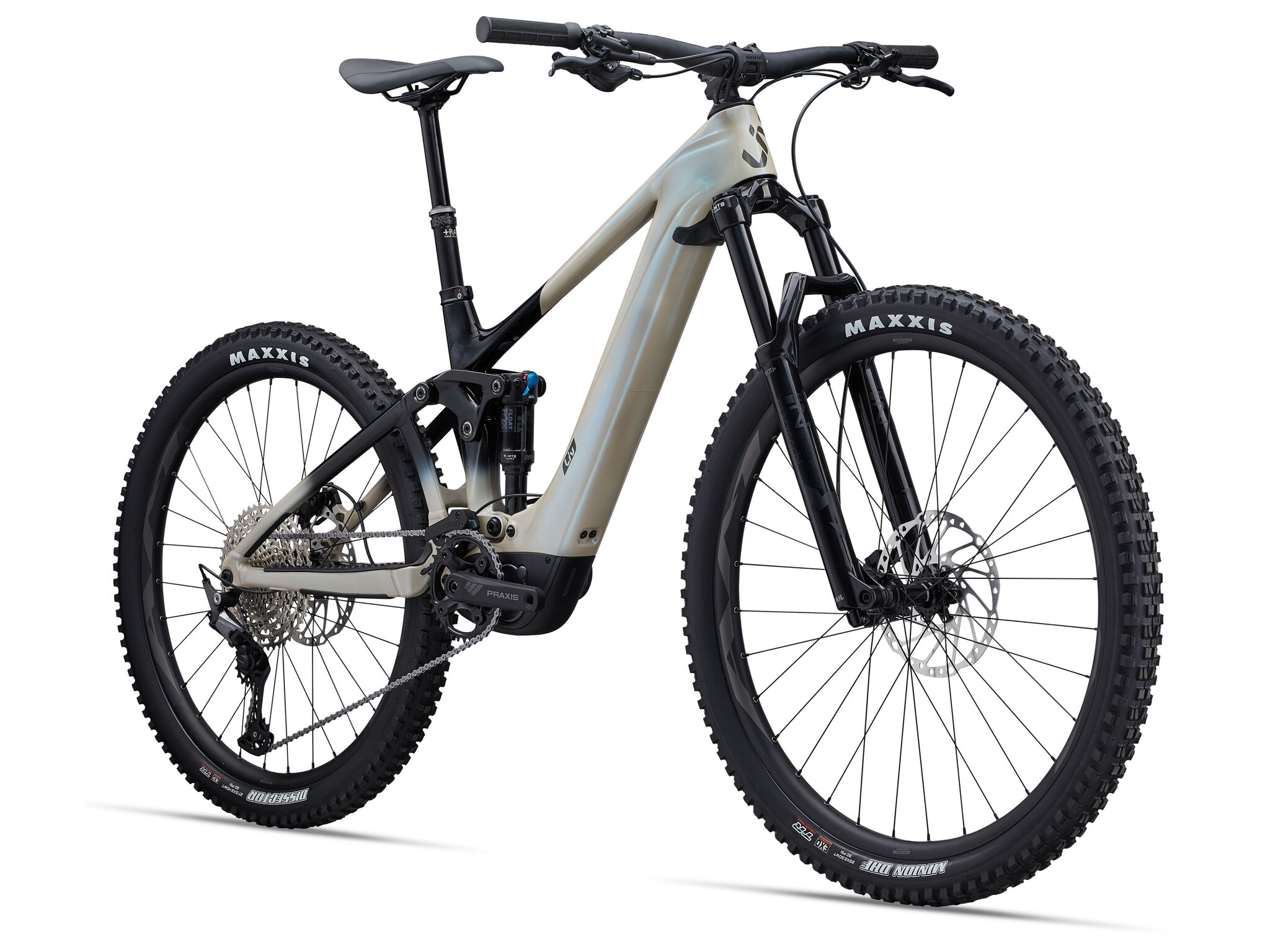

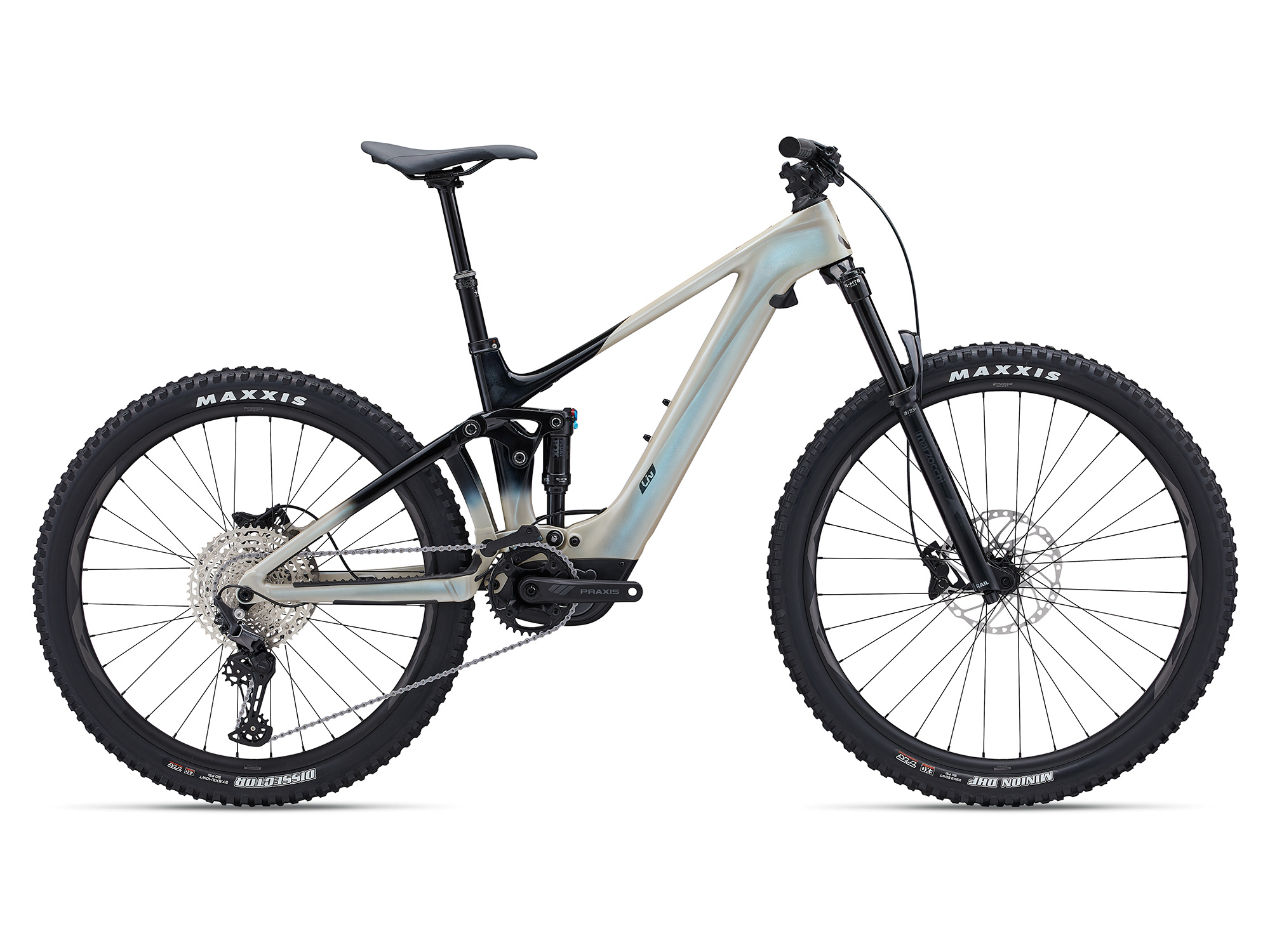

ext-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.

Key Performance Factors

Lightweight and nimble

This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.

Powerful and smooth

A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.

Sleek design

From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Sizes	XS, S, M, L
Colour	Shoreline
Frame	Advanced-grade composite front triangles, ALUXX SL-grade rear triangle, 140mm Maestro suspension, flip chip - Maestro, 12x148 thru-axle

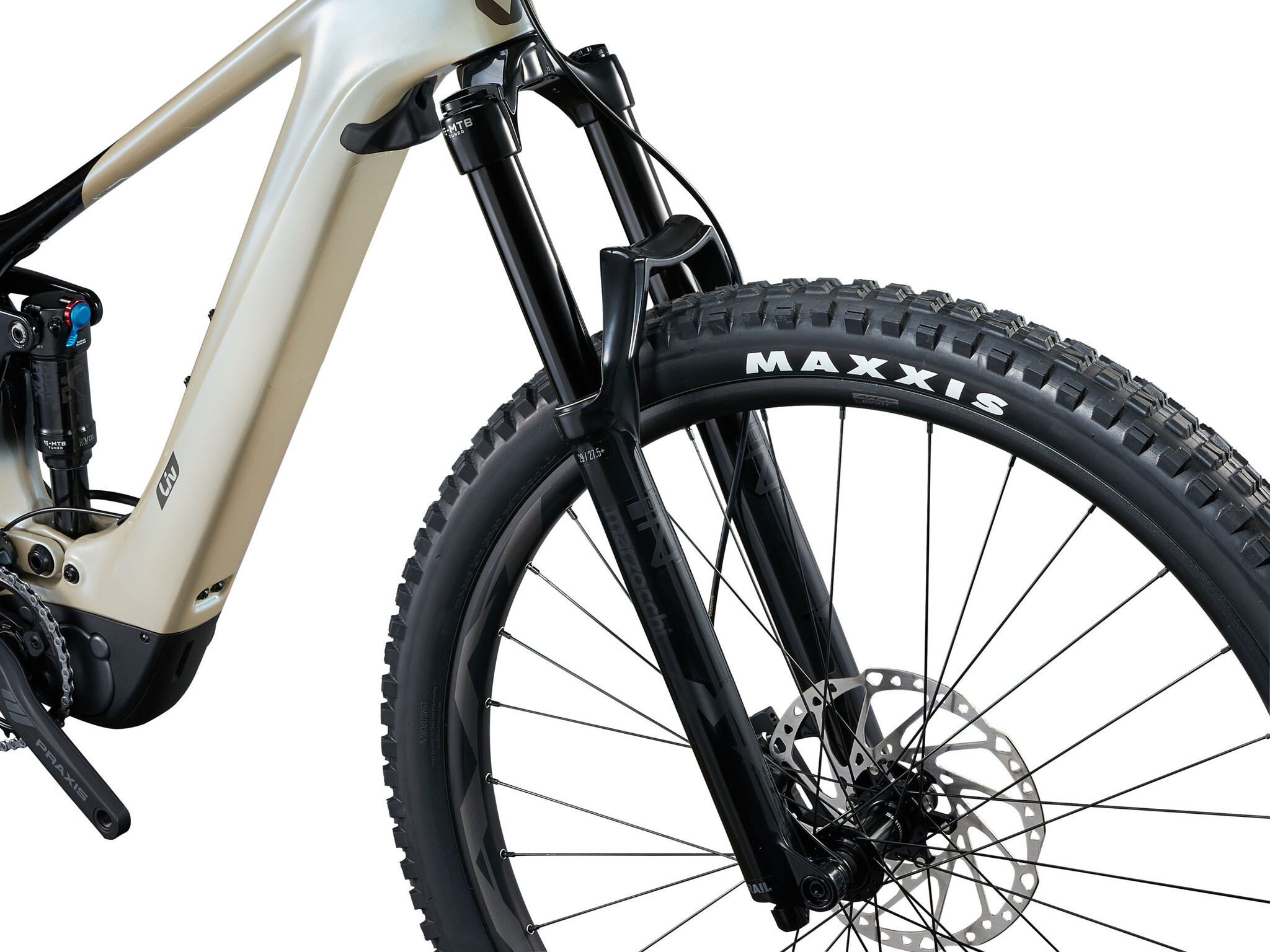

Fork	Marzocchi Bomber Z2 E-Tuned, 150mm, Rail damper, Sweep adjust, Kabolt, 44mm offset

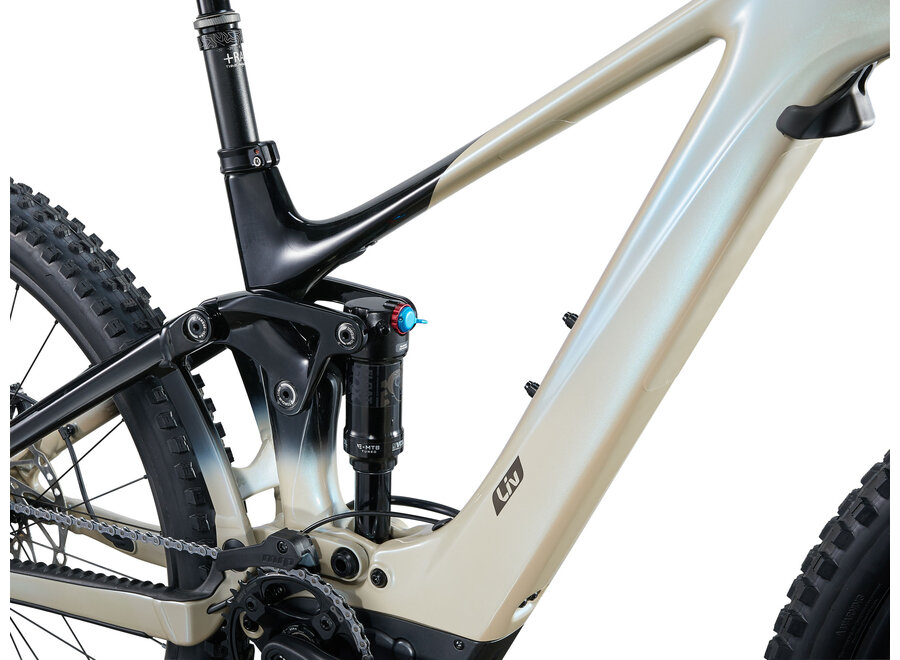

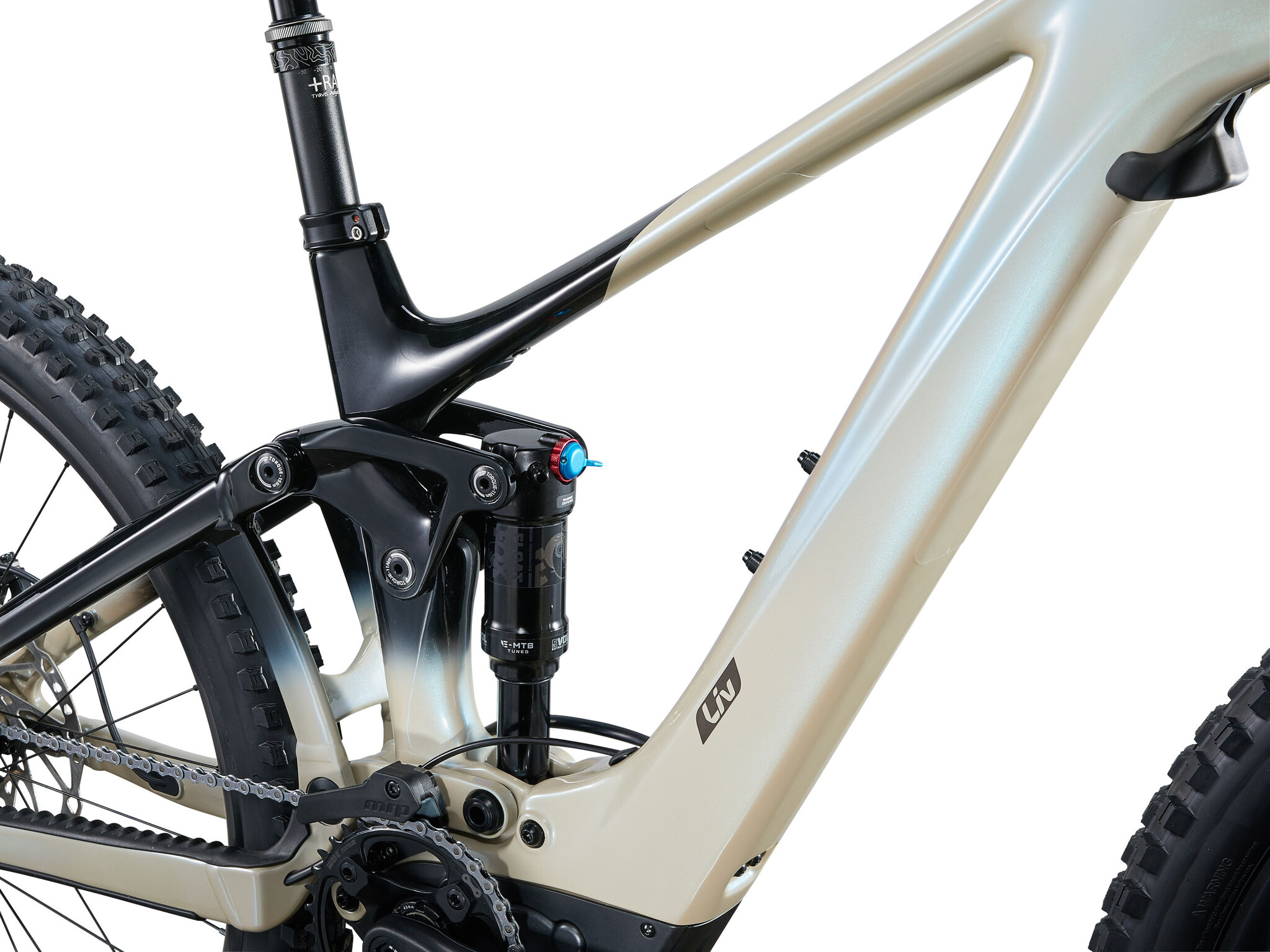

Shock	Fox Float Performance, EVOL Large Volume sleeve, 2-position, 185/52.5
Handlebar	Giant Contact TR35, 20mm rise, 35mm
Grips	Liv Tactal Pro-E single lock-on
Stem	Giant Contact SL 35
Seatpost	Tranz-X Rad+ dropper, 30.9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm)
Saddle	Liv Sylvia E+
Pedals	N/A
Shifters	Shimano Deore, 1x12
Front Der.	MRP 1x co-moulded chain guide
Rear Der.	Shimano Deore RD-M6100
Brakes	Shimano BR-MT420, 4-piston, hydraulic Shimano RT-64 rotors, [F] 203mm, [R] 203mm
Brake Levers	Shimano Deore BL-M4100
Cassette	Shimano Deore, 12-speed, 10x51
Chain	KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset	Praxis E-crank alloy Q-factor=168mm, chain line: 55mm, max chain ring: 38t Praxis Wave 36t cold forged 4130 premium steel chain ring 104BCD
Bottom Bracket	N/A
Rims	Giant AM30, 6061 alloy, sleevejoint, tubeless ready, 30mm IW [F] 29, [R] 27.5
Hubs	Shimano MT410 Boost, Center-Lock, [F] 110x15mm thru-axle, [R] 148x12mm thru-axle, Shimano MicroSpline body
Spokes	Sapim [F] Race, [R] E-Lite, e-bike optimized
Tires	[F] Maxxis Minion DHF 29X2.50", folding, TLR, EXO [R] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
Extras	Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied Optional: - Giant Recon series e-bike lights available and direct connectable

E-Bike Specifications

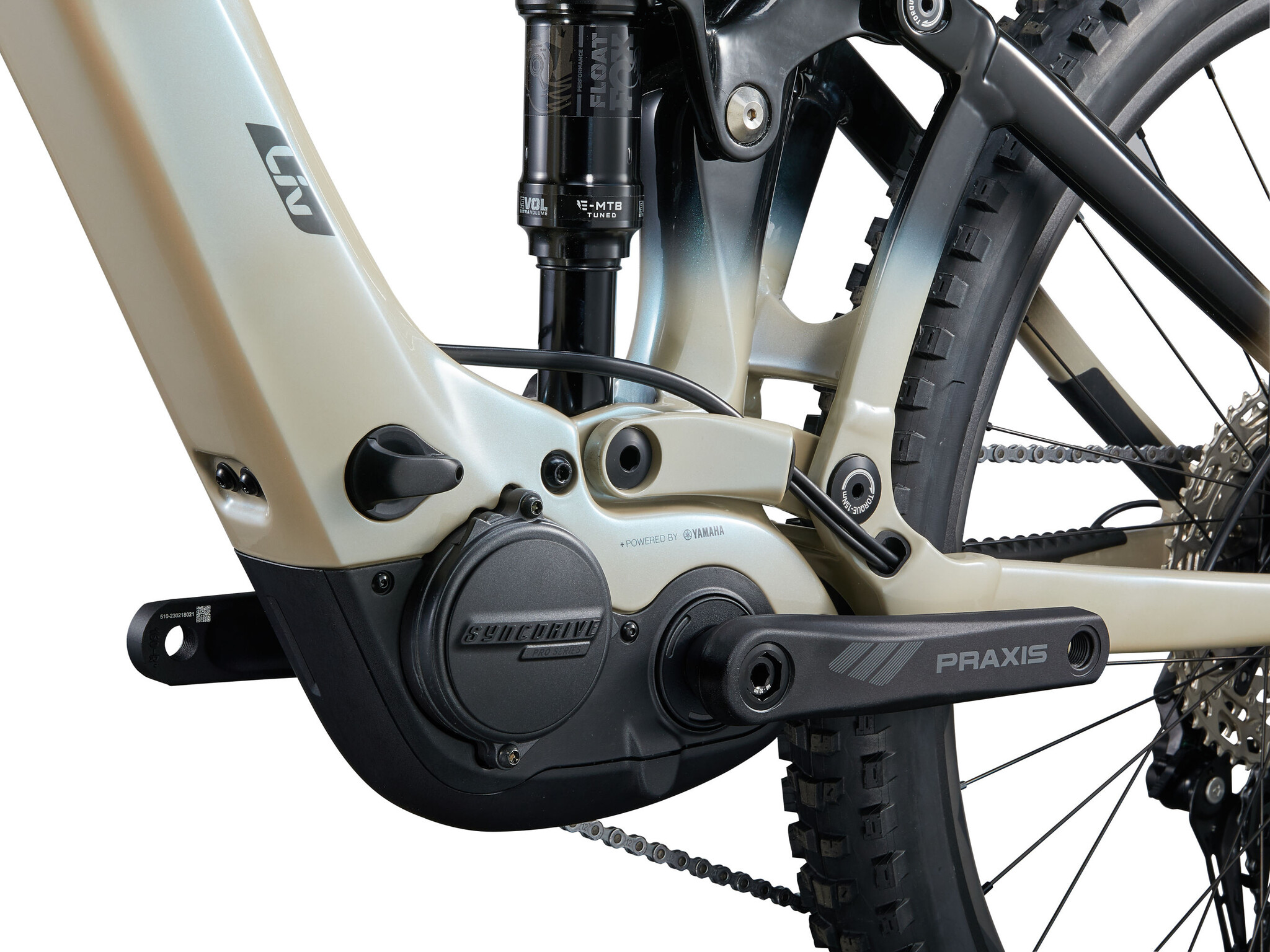

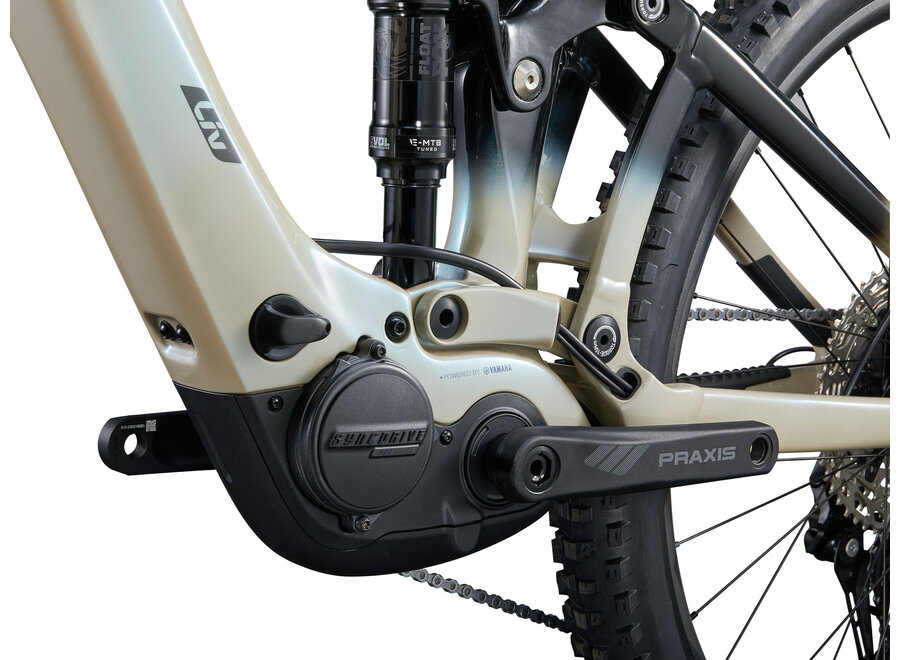

Motor	SyncDrive Pro2, 85Nm, powered by Yamaha
Controls	RideControl Ergo 3, grip integrated, 5 power levels plus Smart Assist auto mode

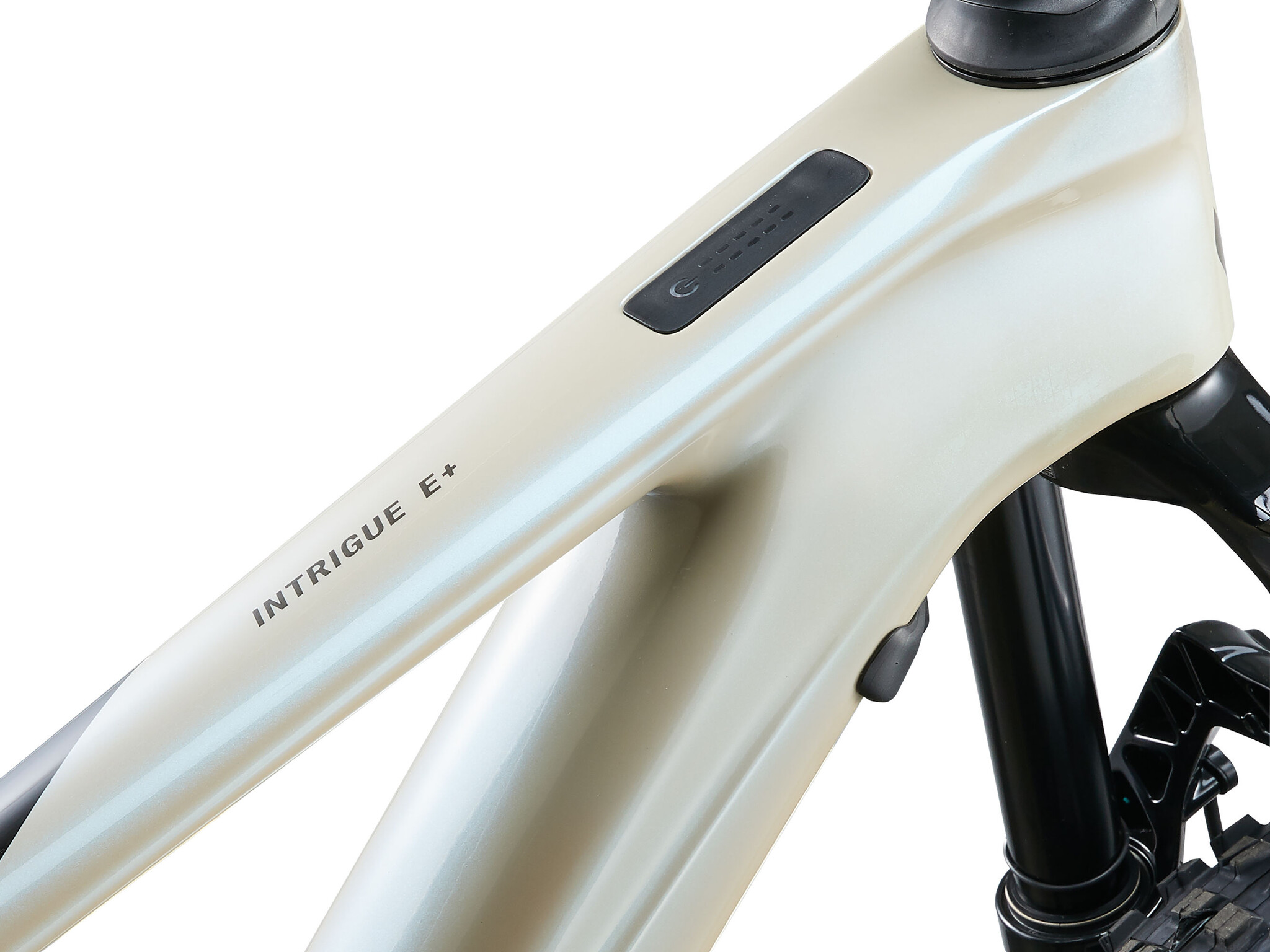

Display	RideControl GO, frame integrated LED console Optional ANT+ wireless display compatible
Battery	EnergyPak Smart 400Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production EnergyPak Plus 200Wh range extender compatible
Charger	EnergyPak 4A smart charger, 60% in 1:45h
