Product description

Smart support

The new SyncDrive Core 2 55Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.

Comfort and control

A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.

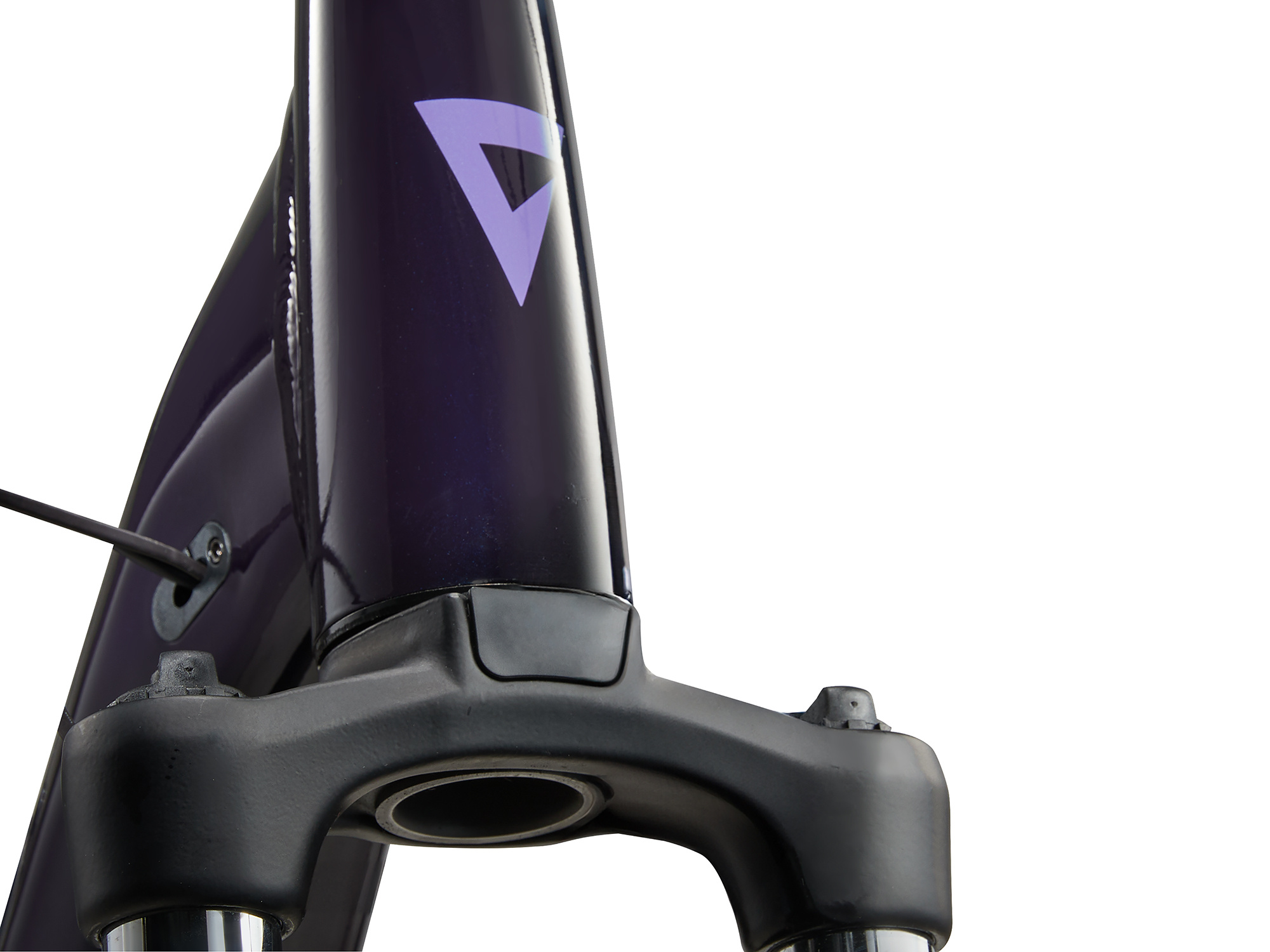

HEAD TUBE CHARGE PORT

Newly designed charge port has been relocated from the motor mount to the head tube. This higher placement offers easier access and convenience for charging the battery.

Colour	Black Currant, Early Espresso
Frame	ALUXX-grade aluminum, 1.125" head tube, semi-integrated battery, KSA18 kickstand mount
Fork	SR Suntour Mobie A32 DC coil spring, 63mm, 15x100mm thru-axle
Shock	N/A
Handlebar	Alloy, mid-rise, 31.8mm
Grips	Giant Comfort Ergo Microtech Plus lock-on
Stem	alloy angle adjustable
Seatpost	Giant forged alloy, 30.9mm, 2-bolt micro adjustable
Saddle	Selle Royal Vivo Essenza Plus
Pedals	platform
Shifters	Shimano Altus, 1x9
Front Der.	N/A
Rear Der.	Shimano Alivio RD-M3100
Brakes	Tektro HD-M275, hydraulic Tektro TR-52 rotors, [F] 180mm, [R] 160mm
Brake Levers	Tektro HD-M275
Cassette	Shimano Alivio, 9-speed, 11x36
Chain	KMC e.9 Sport, e-bike optimized
Crankset	forged alloy, 38t
Bottom Bracket	N/A
Rims	Giant GX03V, alloy, 700c
Hubs	Shimano [F] HB-TC500 100x15mm thru-axle, [R] Shimano FH-QC300-HM 135mm QR
Spokes	stainless
Tires	Schwalbe Big Ben, 622x55, RaceGuard, ADDIX, wire bead w/ Reflective
Extras	fenders, KSA18 direct mount kickstand, alloy MIK rear carrier

E-Bike Specifications

Motor	SyncDrive Core2, 55Nm, powered by Yamaha
Controls	RideControl Ergo, 5 power levels plus Smart Assist auto mode
Display	N/A

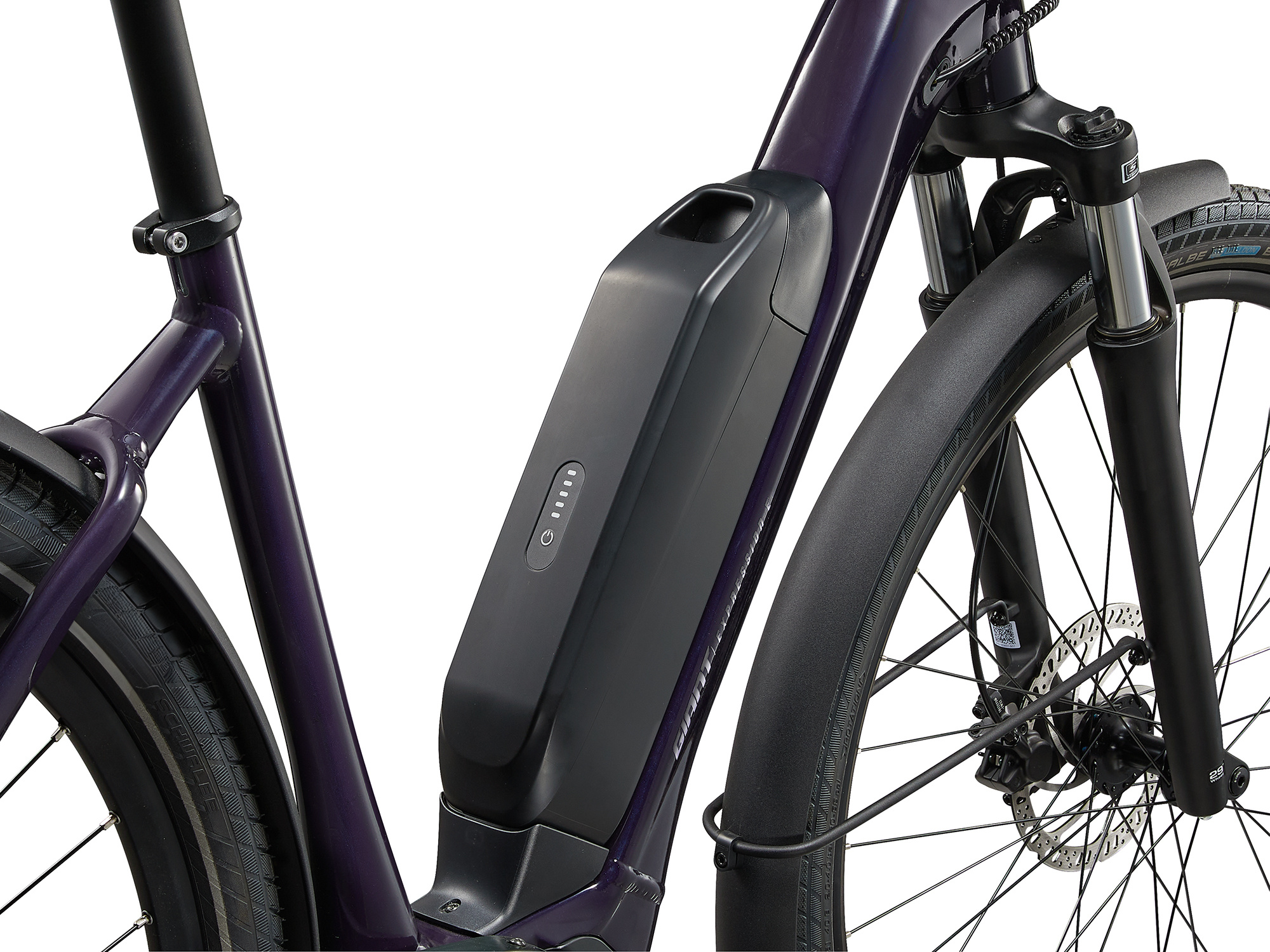

Battery	EnergyPak 500Wh, CO2 neutral production
Charger	EnergyPak 4A smart charger compact, 60% in 2:30h

Highlights

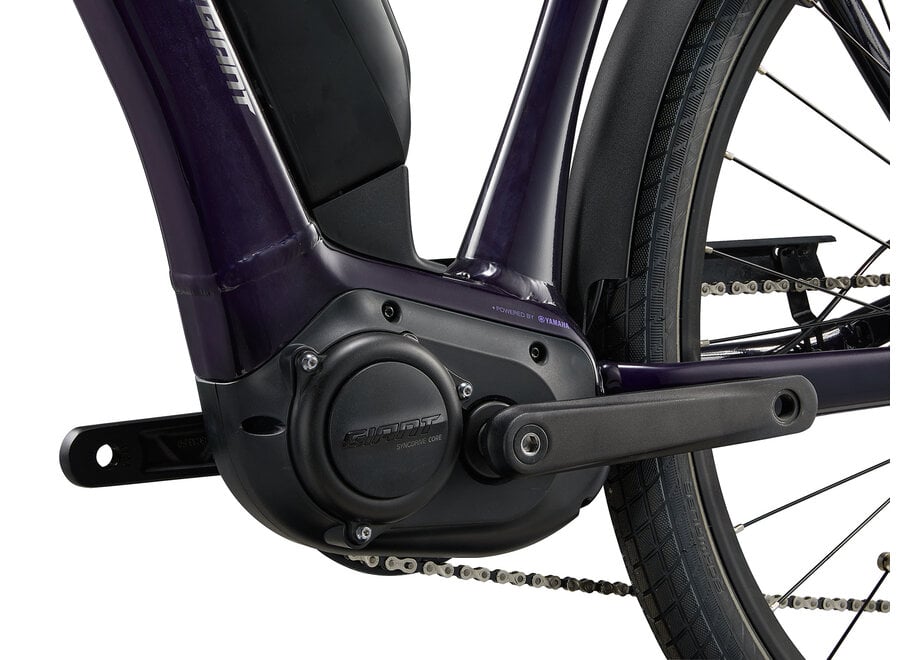

This low-step through E-bike features the new Syncdrive Core2 55Nm, a compact and lightweight motor that’s ideal for commuters and recreational riders. It delivers 55Nm of torque and utilizes Smart Assist technology, which features six sensors including slope detection and an accelerometer to produce the precise amount of power needed at all times. The result is a quiet, natural ride experience. A suspension fork helps smooth out rough roads.
