Product description

Modern MTB Design

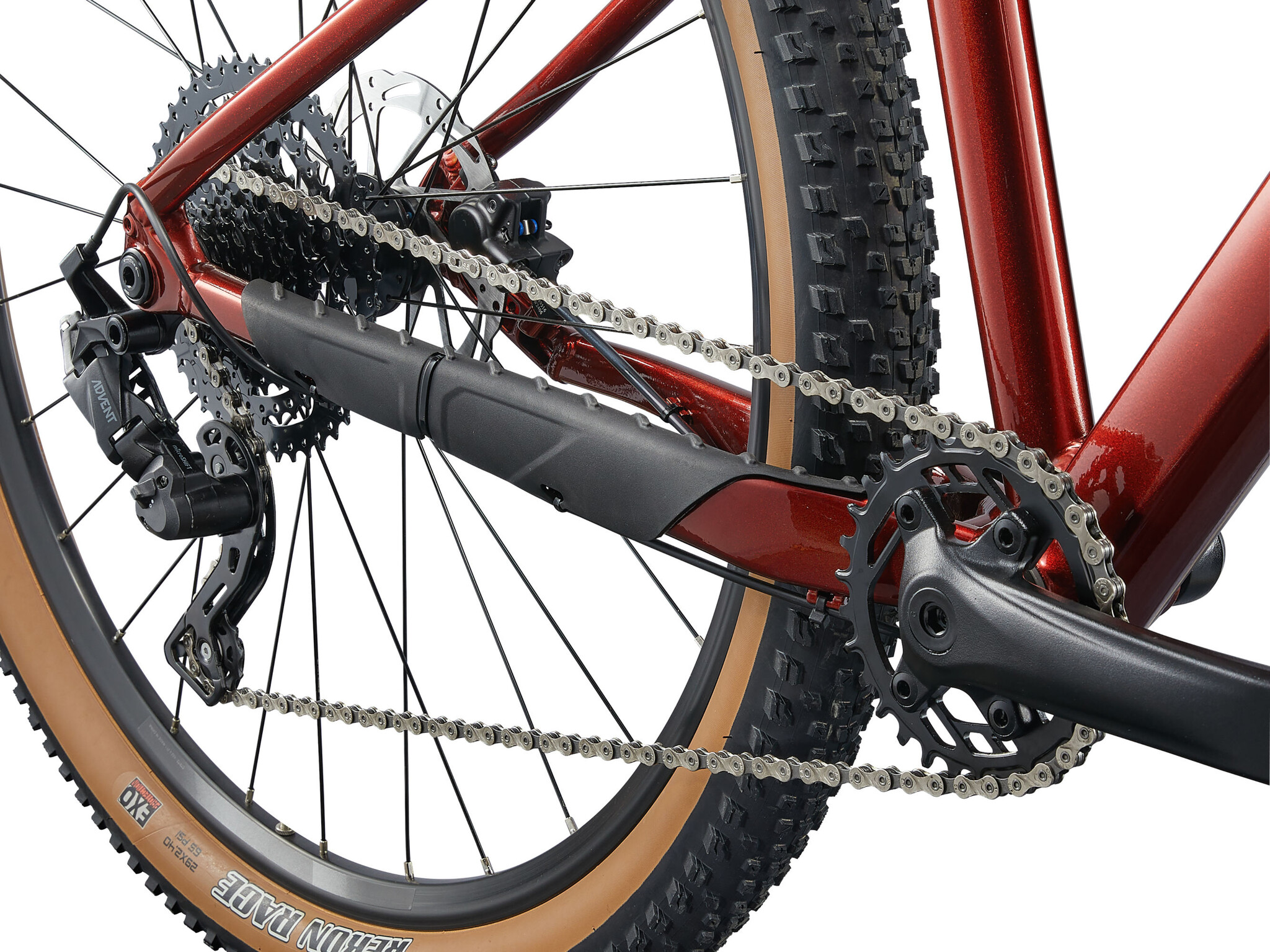

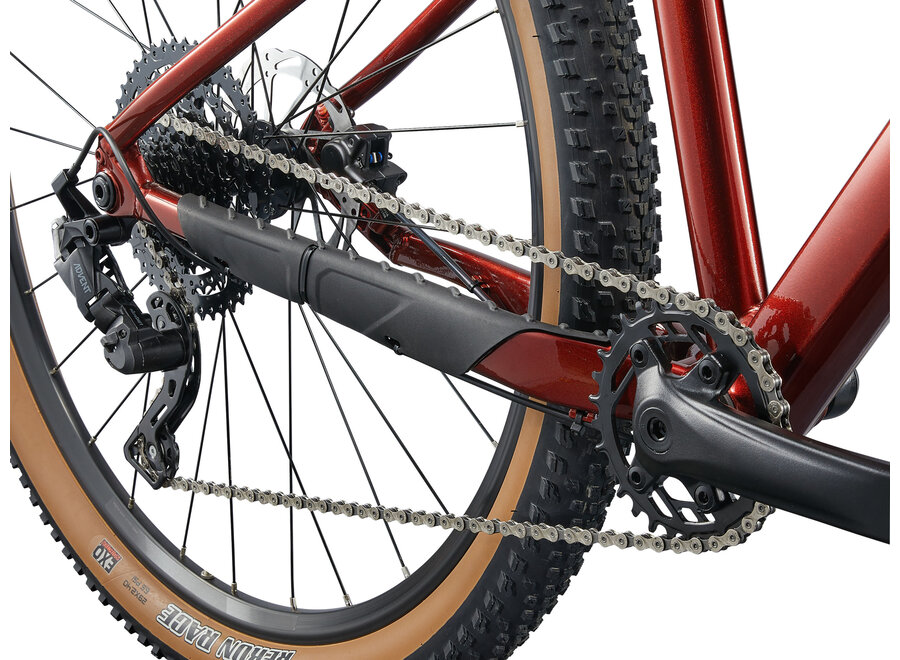

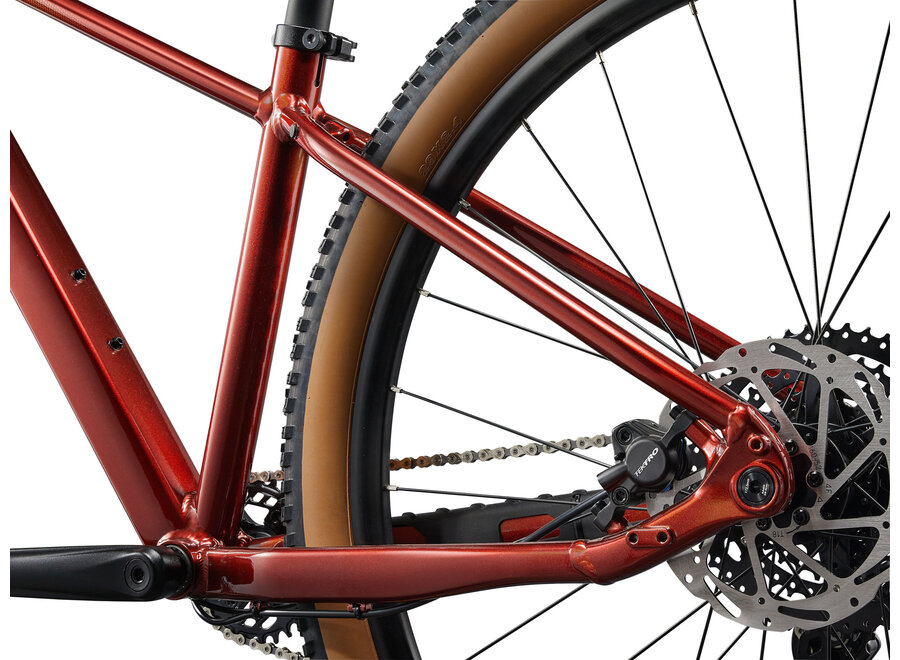

Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)

Off-Road Control

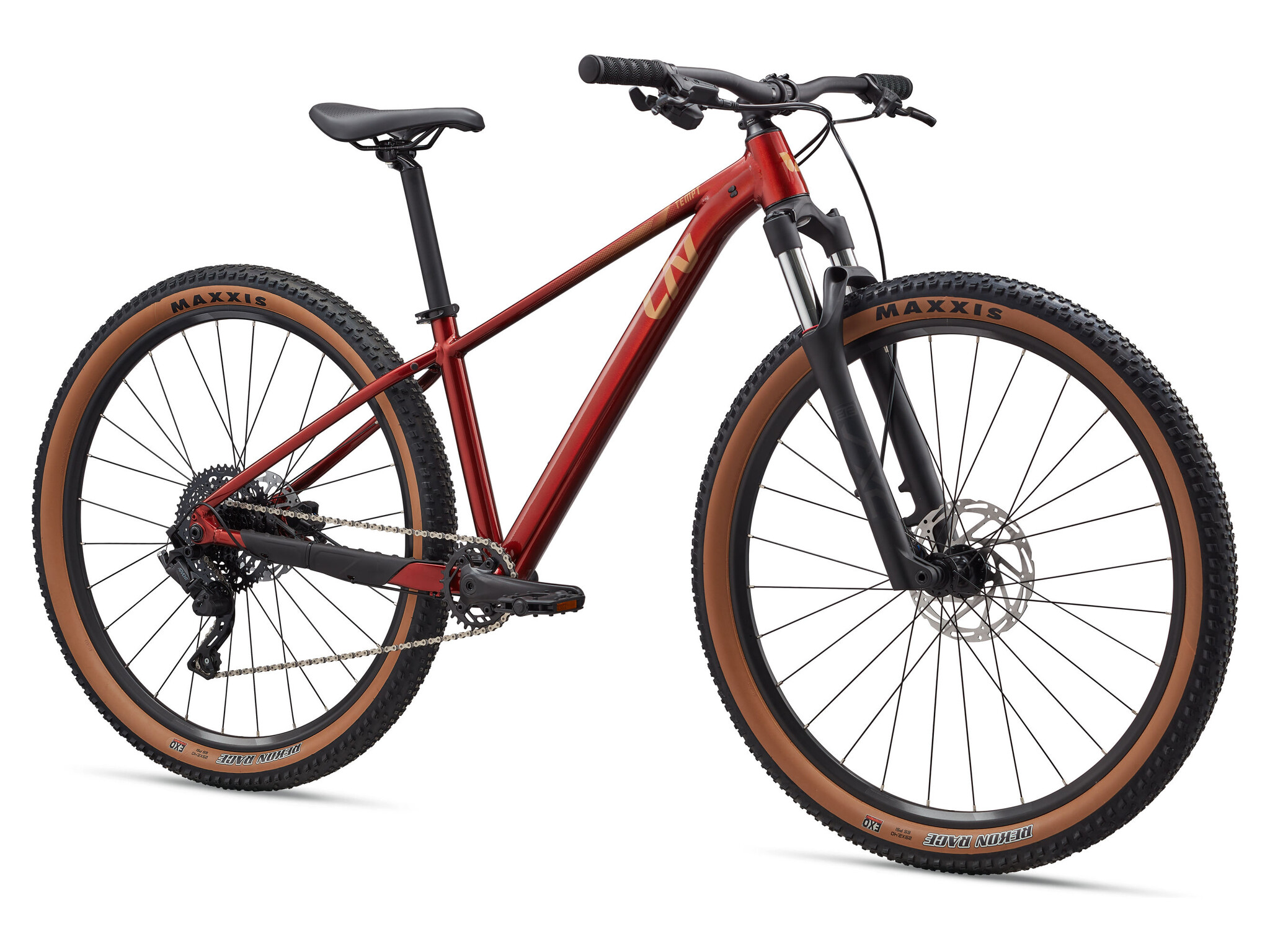

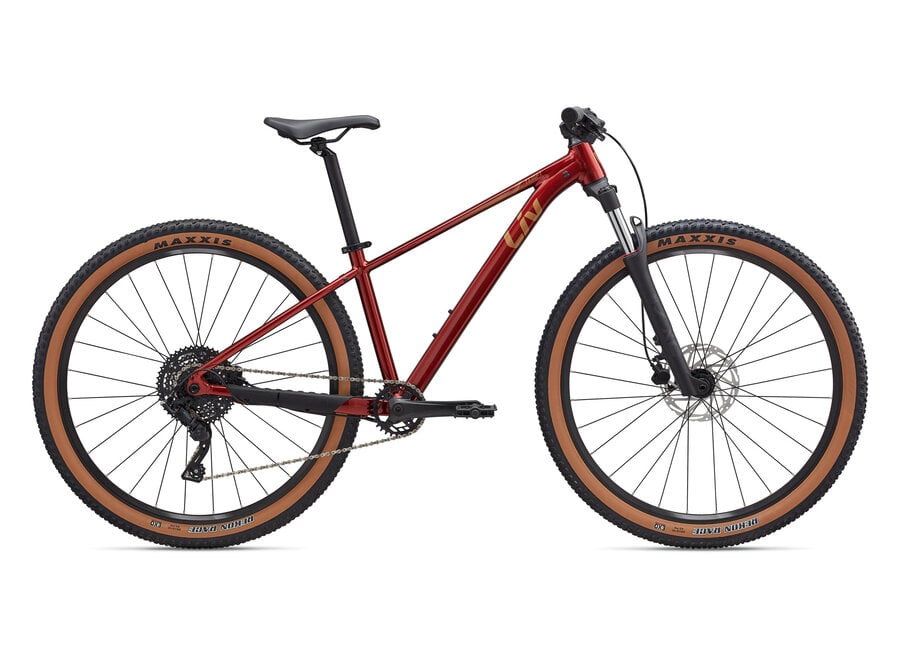

The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.

Light and Durable

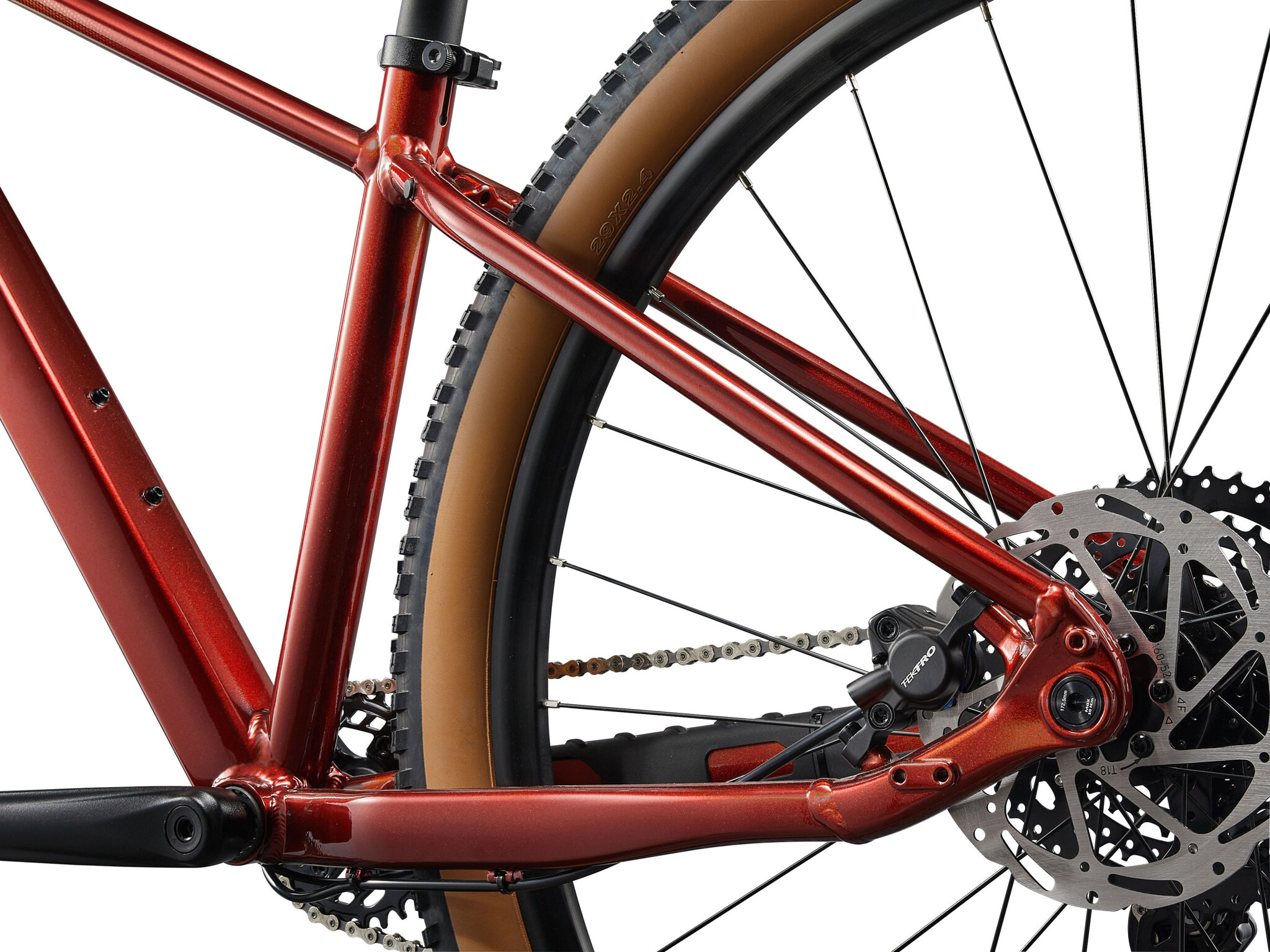

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.

Sizes	27.5: XS, S 29: S, M, L

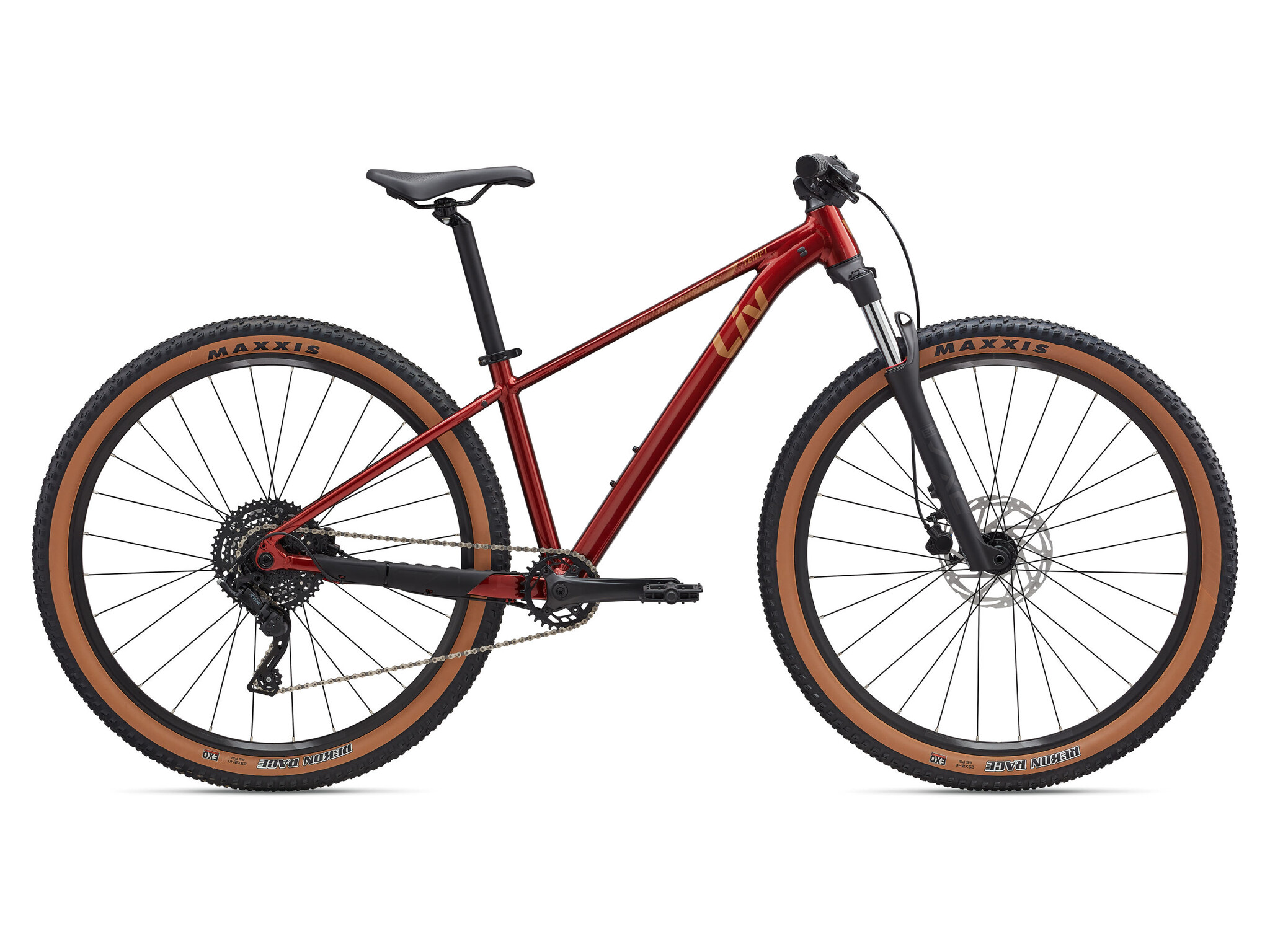

Colour	Mars Dust, Frost Silver
Frame	ALUXX-grade aluminum

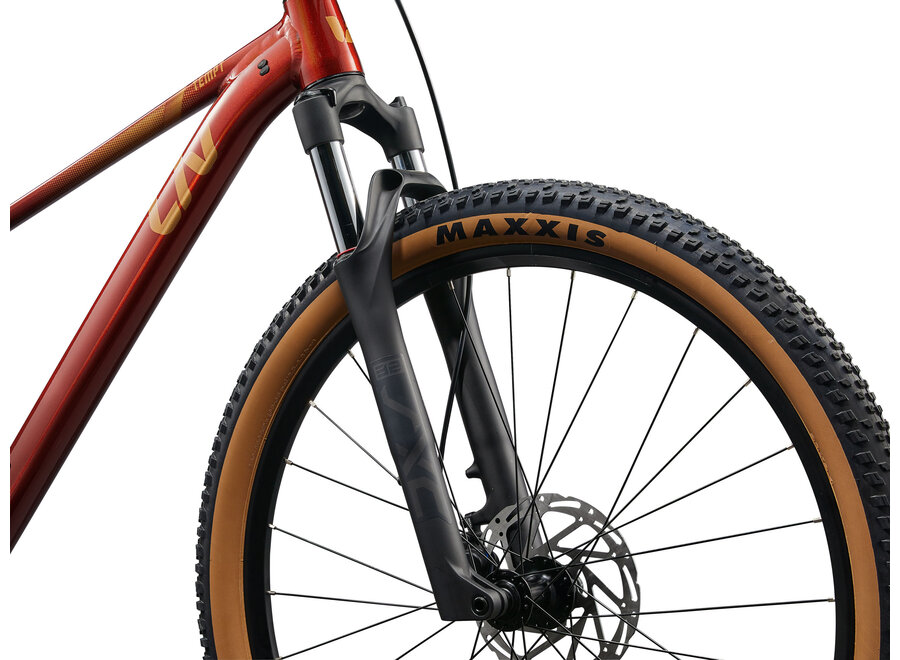

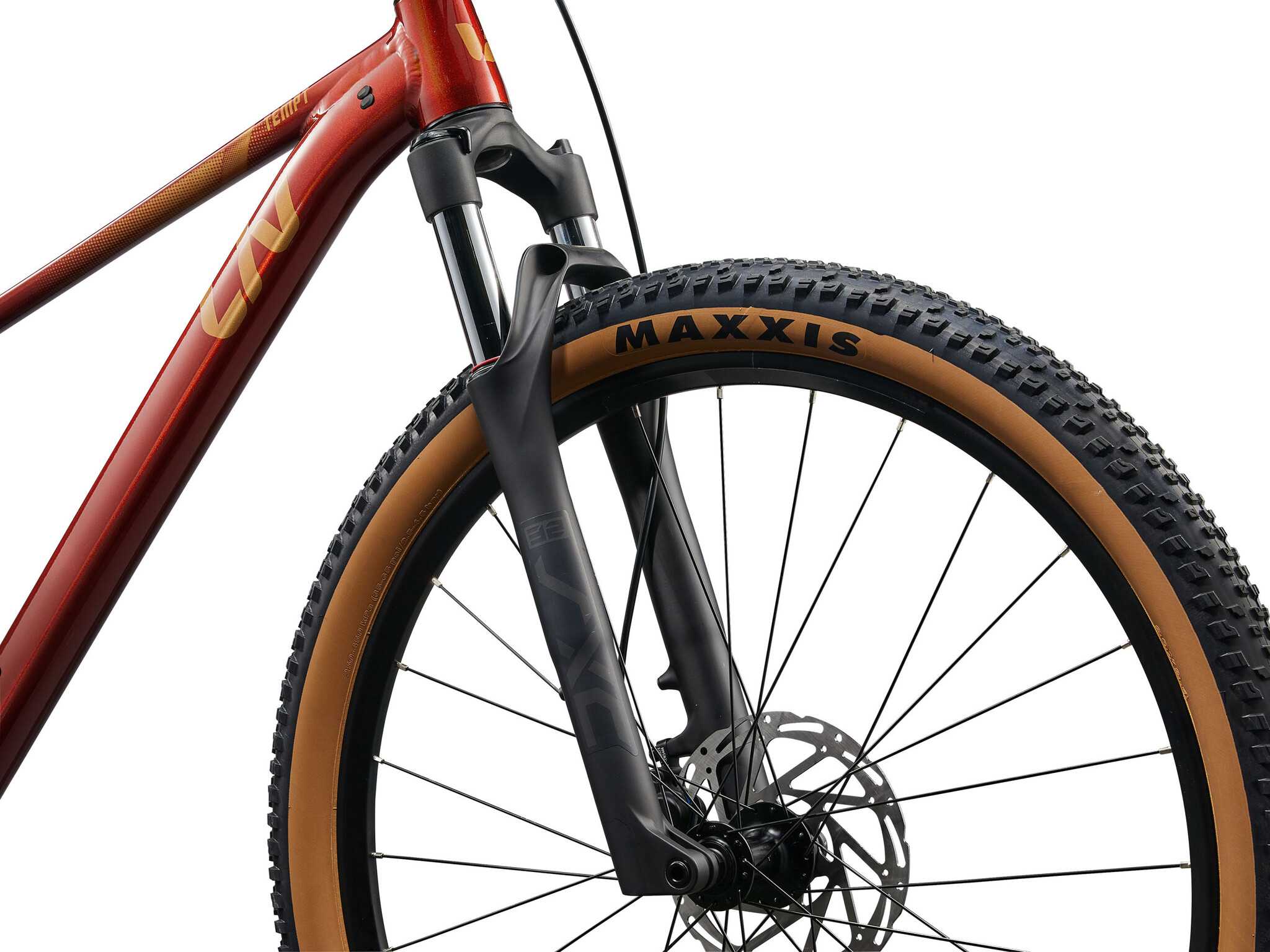

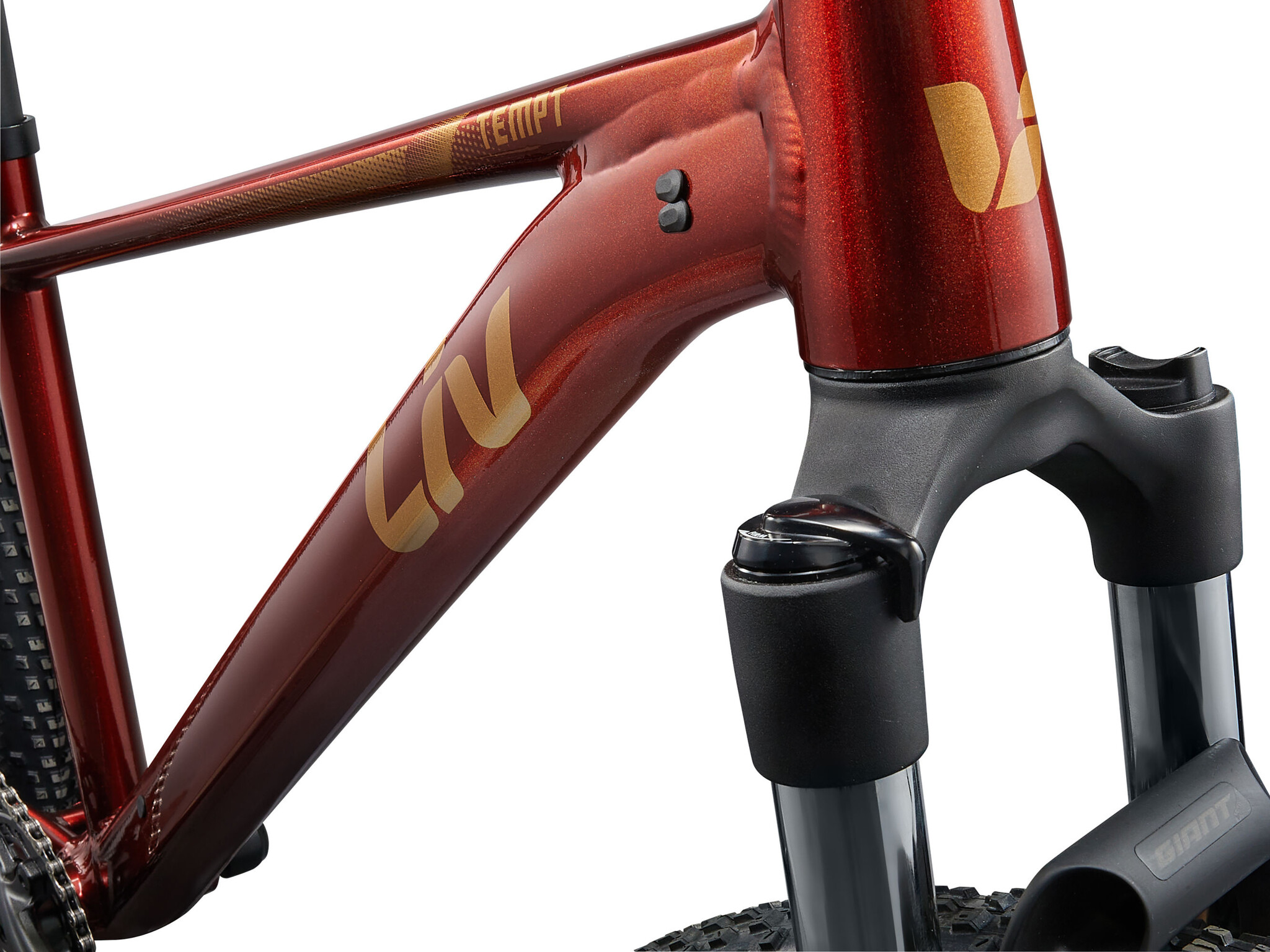

Fork	Giant SXC32-3 RL, coil spring, 1.5" tapered alloy steerer, 15x110mm thru-axle XS,S: 80mm (27.5) S, M, L: 100mm (29)
Shock	N/A

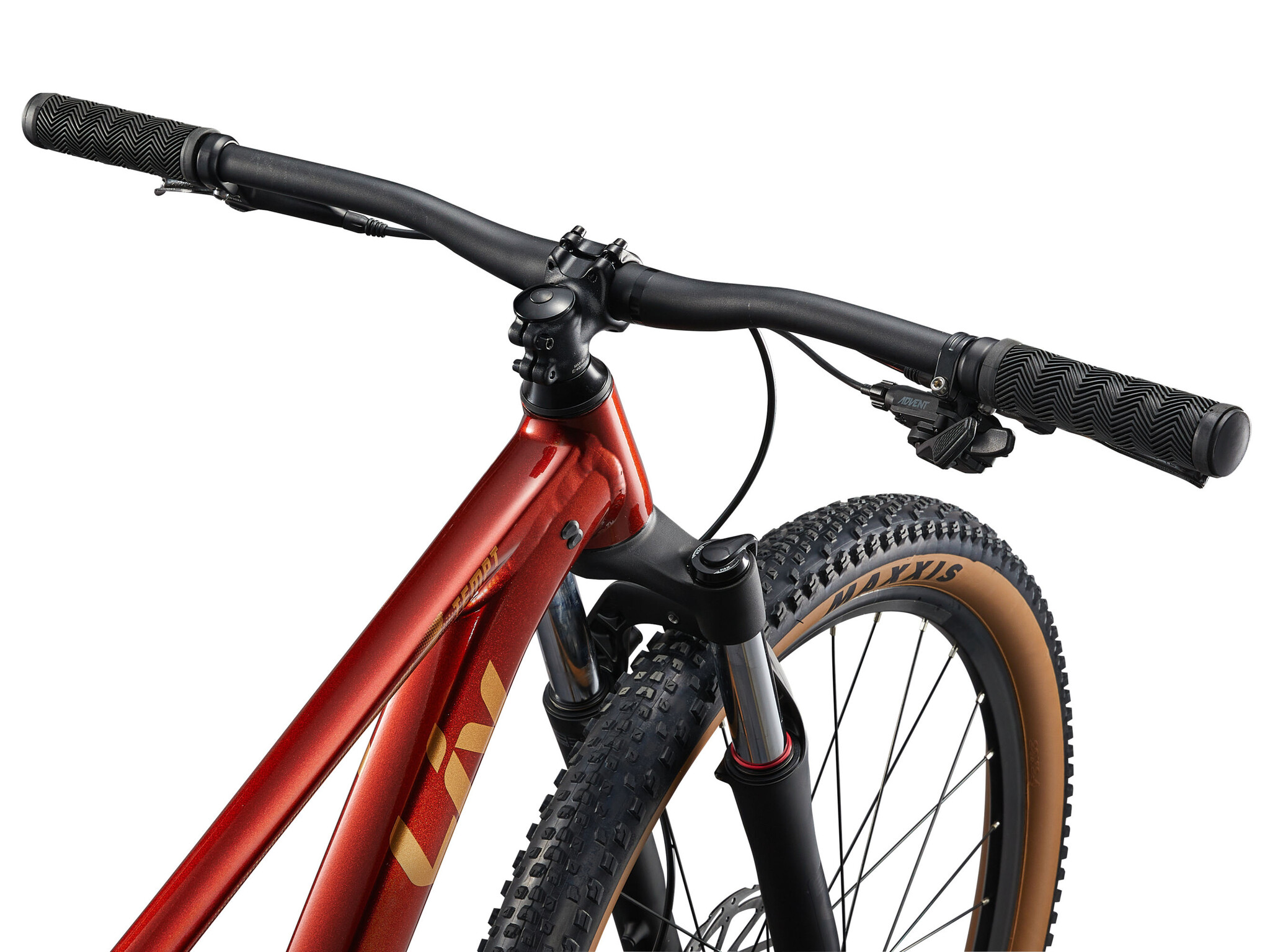

Handlebar	Giant Connect Trail, 31.8mm
Grips	Liv Sole-O
Stem	Giant Sport, 7-degree
Seatpost	Giant Sport, 30.9mm
Saddle	Liv ErgoContact Trail
Pedals	platform
Shifters	microSHIFT Advent 1x9
Front Der.	N/A
Rear Der.	microSHIFT Advent RD-M6195M with clutch
Brakes	Tektro HDC TKD 149, hydraulic Tektro rotors, [F]180mm, [R]160mm
Brake Levers	Tektro TKD-149
Cassette	microSHIFT Advent, 9-speed, 11x46
Chain	KMC X9
Crankset	ProWheel Charm, [27.5] 32t, [29] 30t, 52.5mm chainline 32t
Bottom Bracket	cartridge
Rims	Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
Hubs	alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
Spokes	stainless
Tires	Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", 60 TPI, wire bead
Extras	2.4" max tire size, max chainring 32t
